Your PFD deserves better than PowerPoint and Visio

The free, browser-based PFD editor with 550+ pharma symbols, ISA-5.1 & ISO 10628 libraries, data tables, and version control. No install. No Visio license. No workarounds.

Start Your First PFD
Free for individuals·No install required

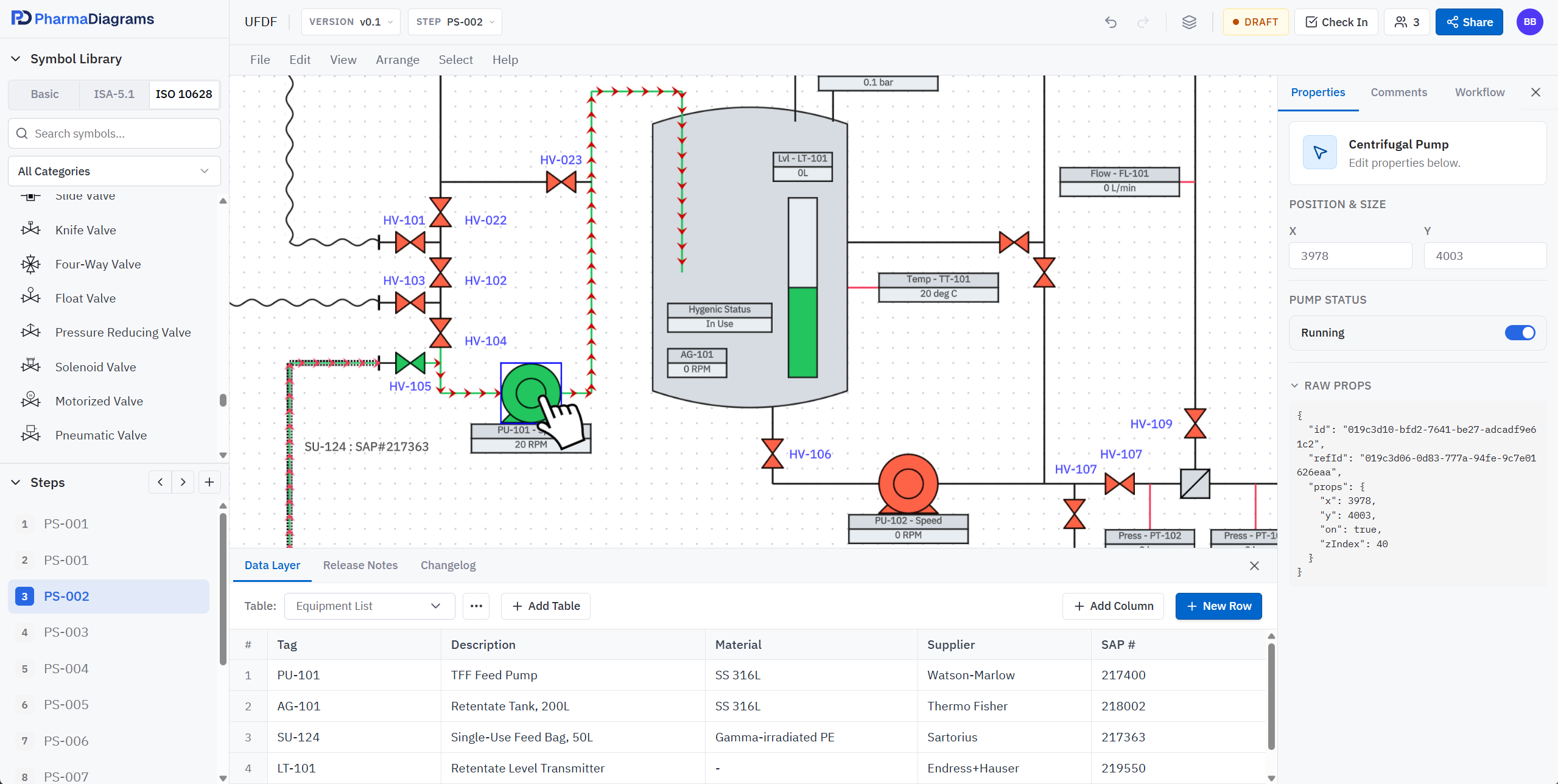

PharmaDiagrams PFD Editor

You already know this workflow is broken.

The PFD is in Visio. The parameters are in Excel. The version everyone reviews is a PowerPoint.
When one step changes, you update everything by hand, hoping nothing drifts out of sync.
PharmaDiagrams puts it all in one place.

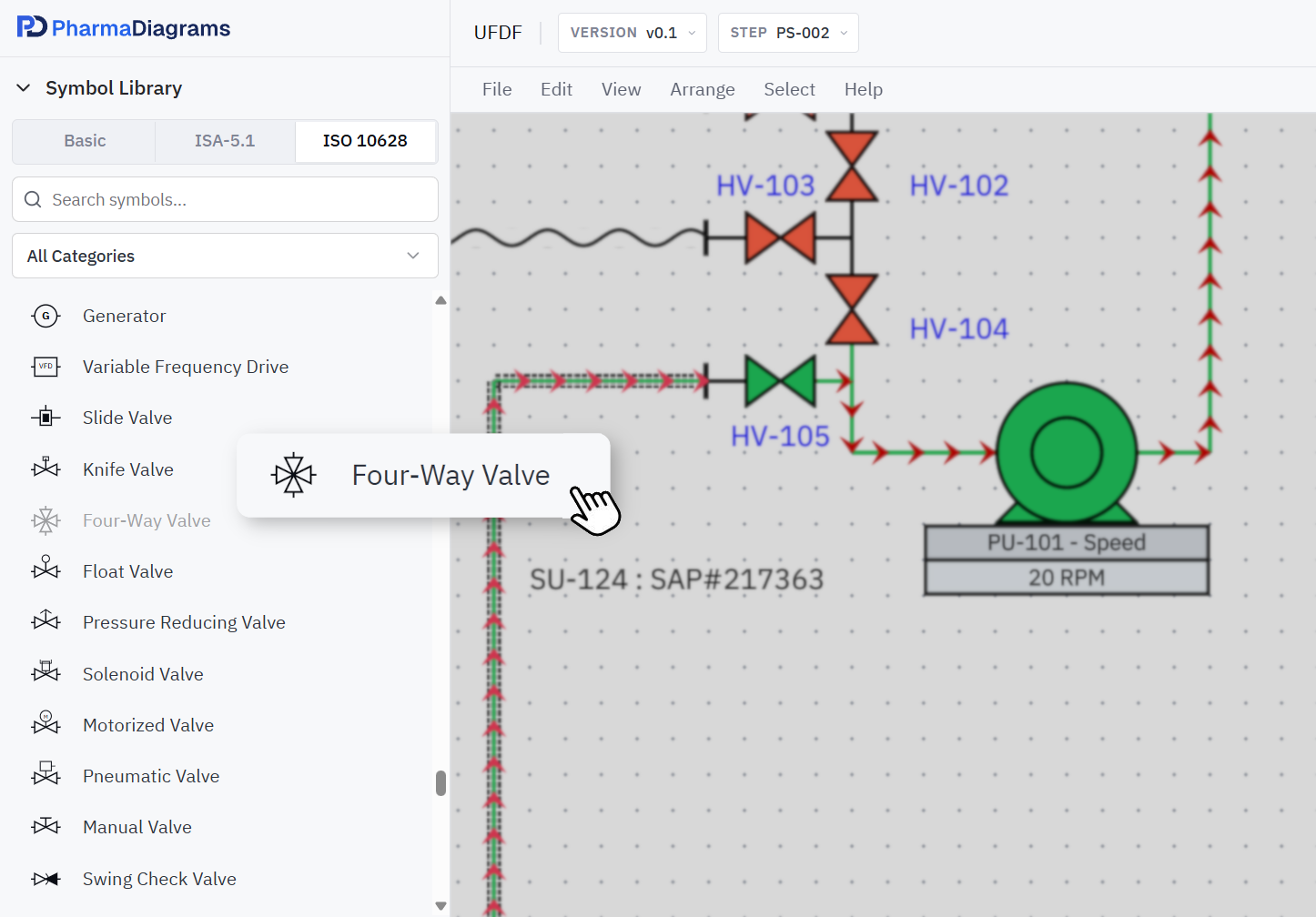

Symbol palette with ISA-5.1 symbols

You shouldn't need three tools to manage one process

Custom Data Schemas

Define your own table structures — not just our defaults. Track whatever your process needs.

Data LayerDocuments
Perform area clearance as per SOP.
Verify membrane integrity test (pre-use).
Equilibrate system per operating procedure.

Multi-Step Editing

Change a parameter, label, or equipment tag across 20+ steps in one action. What used to take hours takes seconds.

Steps
All Steps
PS-001
PS-002
PS-003
PS-004

Review Where It Matters

Pin comments directly to objects, piping, or data rows. Run review cycles inside the diagram — not in email threads or marked-up PDFs.

Resolved
Reopen
Jessica Brown
Jessica Brown2d ago

TMP upper limit should be 1.5 bar per membrane supplier specs. The diagram still shows 2.0 bar from the old Pellicon 2 cassettes — we switched to Pellicon 3 last quarter.

Marco Silva
Marco Silva1d ago

Confirmed with vendor docs. Updated in PS-003 and PS-004.

Jessica Brown marked as resolved18h ago
Write a reply...
Ctrl+EnterSend

Share Beyond Your Team

Share diagrams with CDMOs, auditors, or partner sites. Password-protected links, automatic expiration, viewer-only access. You control who sees what.

Share link

pharmadiagrams.com/s/Sa5mRoLQ

Expires 2/16/2026 · View only

Team member avatarTeam member avatarTeam member avatar
3 users
Share

Need GxP compliance? We're ready when you are.

The free editor is everything you need to build your PFDs. But when your work requires validation, PharmaDiagrams Enterprise adds what regulators expect: formal approval workflows with sign-off, complete audit trail, electronic signatures compliant with 21 CFR Part 11, and a full IQ/OQ/PQ documentation package.

Schedule a Demo

All your diagrams and data stay when the trial ends. Nothing is lost.

Approval Workflow
In Progress
Document:UFDF-001-R03·Ultrafiltration/Diafiltration Process
Signature Progress2 of 3 signatures
Dr. Sarah Chen
Dr. Sarah ChenProcess Engineer
Meaning:Authored
Signed electronically
Feb 7, 2026 · 09:14 AM
Marco Silva
Marco SilvaQA Specialist
Meaning:Reviewed
Signed electronically
Feb 7, 2026 · 02:47 PM
3
Elena Rodriguez
Elena RodriguezQA Manager
Meaning:Approved
Sign Document
21 CFR Part 11 Compliant·All signatures include timestamp, user ID, and meaning

Your PFD deserves better than PowerPoint and Visio

Sign up in 30 seconds. Create your first PFD in under 5 minutes.

Create Your First PFD
